LOK E, rail – road vehicle equipped with an electrical motor.
Line LOK MVP E
Description

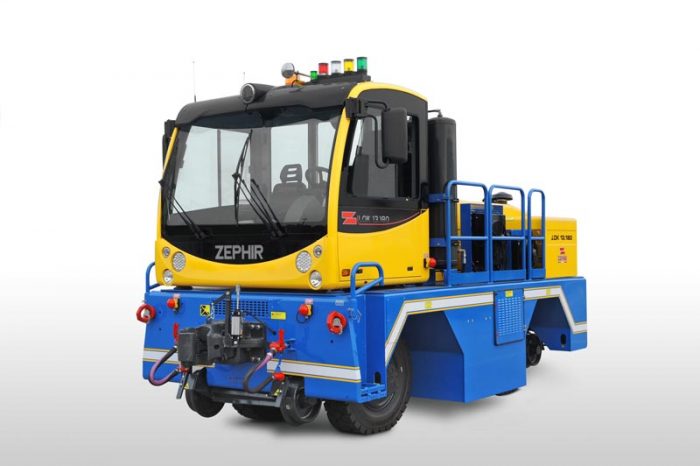

Zephir is pleased to present on the market LOK E, rail – road vehicle equipped with an electrical motor.
Progression of LOK range, the LOK E has two 30 kW electrical motors (instead of a diesel engine, one for each axle, 1000 Ah, 80 V battery powered. This vehicle could be on and off – tracked from railways and it can cross tracks to perform cross terminal movements quickly and efficiently at a smaller cost than the LOK range. LOK E range enhances the environmental role in Zephir strategies, that is more and more engaged in designing non – polluting vehicle
Data Sheet
| Lok E-mpv | ||
|---|---|---|
| Drive | Battery powered | |
| Operator type (road mode) | Operator seated | |
| Dimensions (LxWxH) | mm | 4800x2500x3375 |
| Service weight | t | 14 |
| Max. drawbar pull | kN | 30 |
| Max. towing capacity | t | 600 |
| Max. rail speed unloaded/loaded | km/h | 30 |
| Mechanical transmission – (fwd/rev) speeds | 1/1 | |
| Drive motors rating (power system, quantity) | kW | 30 x (2) – (AC) |
| Acid lead battery with centralized refilling system , voltage/nominal capacity | V/Ah | 80/960 + 80/960 |
| On board battery charger | V/A | 80/150 x (2) |
Accessories
- Radio remote control, interlock, ground operator safety remote control
- Availability of different rail gauge measures
- Air conditioning inside the cabin
- Wide range of hooks, couplers and tow bars
- Pneumatic braking system
- Railtrack “short-circuit” signalling system and distance proximity sensors
- In-railing and on-hook video cameras system
- Cold environment protection “Arctic pack”
- High temperature pack
- Multi-Unit configuration
- Latest engines generation
- Engine star & stop
- Driver seat on right side
- Painting and custom stickers
- Extended Warranty
- Availability of other options upon request
