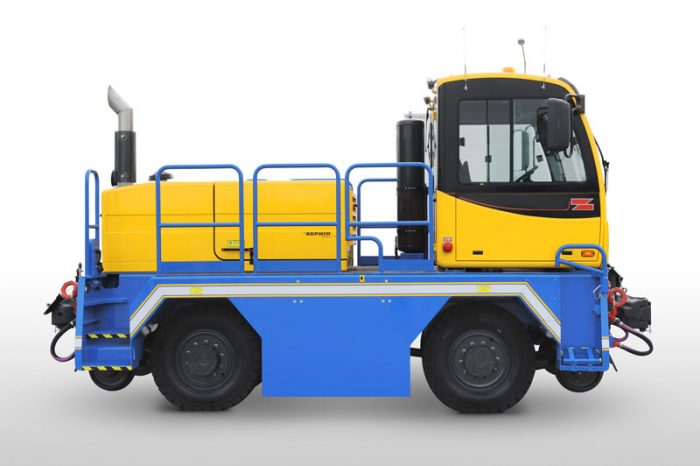

Line Lok 8.130 / 10.170 / 13.220

Line LOK is able to replace locomotives from Maneuver up to 100 tonnes.

Description

Even if these vehicles have relevant dimension and weight, they maintain a great lightness when on and off – tracked from the rails.
They are produced with the latest lower environmental impact engines and could be combined together in order to double the towing capacity.

They should be equipped with several optional like automatic hooks, remote control, air conditioning system, pneumatic braking system that make the vehicle more comfortable, speedy and safe.

Data Sheet

LOK 8.130 LOK 10.170 LOK 13.220
Drive Diesel Diesel Diesel
Operator type (road mode) Operator seated Operator seated Operator seated
Dimensions (LxWxH) mm 4800x2500x3400 4800x2500x3400 4800x2500x3400
Drive t 10 14 16
Service weight kN 30 50 70
Max. drawbar pull kN 600 1000 1400
Max. towing capacity km/h 25 25 25
Engine manufacturer Cummins Cummins Cummins
Engine power kW/HP 82/110 82/110 82/110
No of cylinders/displacement cm3 4/4500 4/4500 4/4500
Fuel tank capacity dm3 250 250 250
Power shift transmission – torque converter – (fwd/rev) speeds 3/3 3/3 3/3

Accessories

  • Radio remote control, interlock, ground operator safety remote control
  • Availability of different rail gauge measures
  • Air conditioning inside the cabin
  • Wide range of hooks, couplers and tow bars
  • Pneumatic braking system
  • Railtrack “short-circuit” signalling system and distance proximity sensors
  • In-railing and on-hook video cameras system
  • Cold environment protection “Arctic pack”
  • High temperature pack
  • Multi-Unit configuration
  • Latest engines generation
  • Engine star & stop
  • Driver seat on right side
  • Painting and custom stickers
  • Extended Warranty
  • Availability of other options upon request
