RANIERO FORKLIFTS FROM

12t to 33t OF LOAD CAPACITY

ELECTRONIC AC TECHNOLOGY

Capacity 12t at 600 mm load centre

Capacity 14t at 600 mm load centre

AC120-6 – AC140-6

12000 kg, 14000 kg at 600 mm load center – 26500 lbs, 30900 lbs at 24\’ load center

The AC120-6 and AC140-6 Forklifts were developed for handling 12,000 and 14,000 kg loads in short corridors and for a long duration.

Main characteristics:
Reliability guaranteed by particularly robust frames and masts, studied for moving heavy and bulky loads.
High-performance thanks to a 96V and 120V battery tension.
-Using AC Technology (ALTERNATING CURRENT) to manage the traction motor 38kW (96V)/48kW (120V)
and the lifting pump motor 45kW (120V)/50kW (120V), improving performance, autonomy and longevity of battery life.
Simple, efficient operator-forklift interaction and rapid and precise response to every single activated command.
Zero emissions and low noise levels.
Recovery of energy during deceleration or the reverse direction phase.
External mast chains and a high visibility cabin allow the operator to manoeuvre the forklift in surrounding areas promoting a safe workplace.
-A safe and ergonomic entry into the cabin with an optimal driver’s seat position.
-The seat by GRAMMER provides high comfort to the driver
-With the dynamic steering system, steering control is agile and precise.
-Quick and safe direction change with Devio Command or a double pedal.
Fork carriage PYN-TYPE, 3 hydraulic ways with piping plus 4th, 5th, 6th and more, make the forklift more versatile for using equipment in different operating environments indoor/outdoor.

Sectors: paper, cotton, steel and aluminium, wood, logistic, recycling, empting containers.

Capacity from 15 to 18t at 600mm load centre

AC150-6 – AC160-6 – AC170-6 – AC180-6

15000 kg, 16000 kg, 18000 kg at 600 mm – 33100 lbs, 35300 lbs, 39700 lbs at 24\’

The AC series from 15 to 18 tons represents since 2009 a revolution in handling heavy loads in short corridors,
long working autonomy and difficult climatic conditions

Main characteristics:
• The electronic management AC, batteries 96V o 120V voltage, allow this forklift series equal performance to those of internal combustion of similar range.
• AC technology offers a long list of advantages for the forklift driverRapid and precise response to every single activated command.
• No vibration emissions on handling loads benefiting safety in the workplace during the lifting, tilt or shifting.
• No impetuous movement typical of diesel engines in driving phases.
• Energy-saving each engine– traction 45kW (120V), lifting pump 55kW (120V), steering- is activated individually when required.
• Operator- forklift interaction regarding movements, diagnostic of anomalies and in the management of working parameters.
• Easing the steering and greater driving precision. Quick and safe direction change with device command or bi-pedal.
• Recovery of energy on deceleration or reversal of the driving direction through the oil bath braking system.
• A well-weighted and robust frame, a reinforced mast provide stability, safety and reliability when handling heavy loads and often bulky.
• Battery positioned on side or rear eases a quick change.
• Comfortable cabin with a 360° and overhead view. Located on a low-height frame, allows the operator to get in and off frequently and in safety.
• Fork carriage PYN-TYPE, 3 hydraulic ways with piping plus 4th, 5th, 6th and more make the forklift more versatile for using equipment in different operating environments, indoor/outdoor.

Sectors: paper, cotton, steel and aluminium, wood, logistic, recycling.

Capacity 15 to 18t at 1200 mm load centre

Capacity 25t at 800 mm load centre

Capacity 30t at 600 mmm load centre

AC150-12 AC160-12 AC180-12 AC250-8 AC300-6 – CUSHION TYRES

15000kg,16000kg,18000kg@ 1200mm, 25000kg@ 800mm, 30000kg@ 600mm – 33100lbs, 35300lbs, 39700lbs at 47′, 55100lbs at 31′, 66200lbs at 24′

The AC series from 15 to 20 tons with load centre at 1200mm, 25 tons at 600mm and 800 mm, is the symbol of deep experience in the high capacity electric forklifts field.
The developing of this innovative line comes from the needs of the manufacturing companies to use performing forklifts for the handling of heavy loads saving operating costs, versatility and zero pollutant emissions.

Main characteristics:
• The electronic management AC and batteries 120V voltage allows this forklift series equal performance to those of internal combustion of similar range.
• TPLS separated side shift from fork positioner. 4 hydraulic ways with piping.
• AC technology offers a list of advantages for the driver. Rapid and precise response to every single activated command.
• No vibration emissions on handling loads benefiting safe workplace during lifting, tilting or shifting.
• No impetuous movement typical of diesel engines in driving phases.
• Energy saving: each engine– traction 45kW (120V), lifting pump 55kW (120V), steering- is activated individually when required.
• Operator-forklift interaction regarding movements, diagnosis of anomalies and in the management of working parameters.
Power-assisted steering that optimizes space and manoeuvresDevio command or bi-pedal for a quick and safe change of gear.
• Braking system in oil bath with energy recovery on deceleration or reversal of the driving direction.
• Well-weighted and robust chassis, a reinforced mast with a cart with 6 bearings d.220 mm bring stability, safety and reliability during the handling of heavy and often bulky loads.
• Rear battery positioning to facilitate a quick change.
• A comfortable cabin with a 360° and overhead view.

ic.

Capacity 16 to 20 at 1200 mm load centre

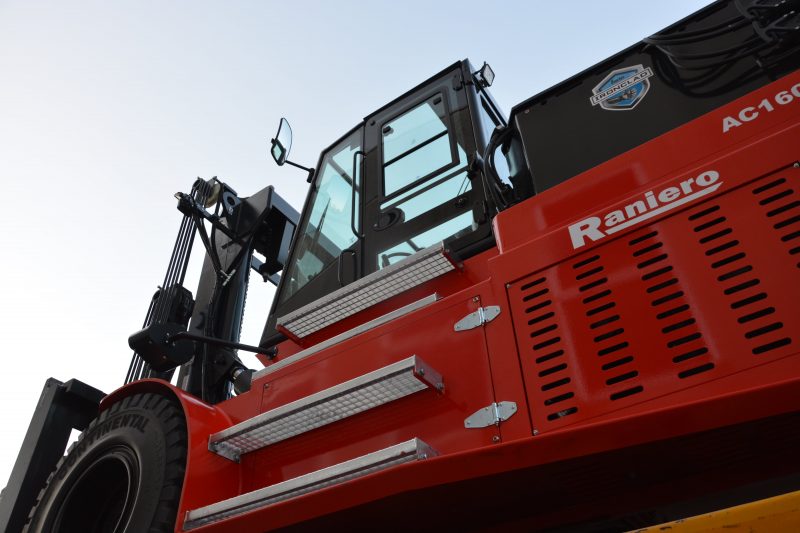

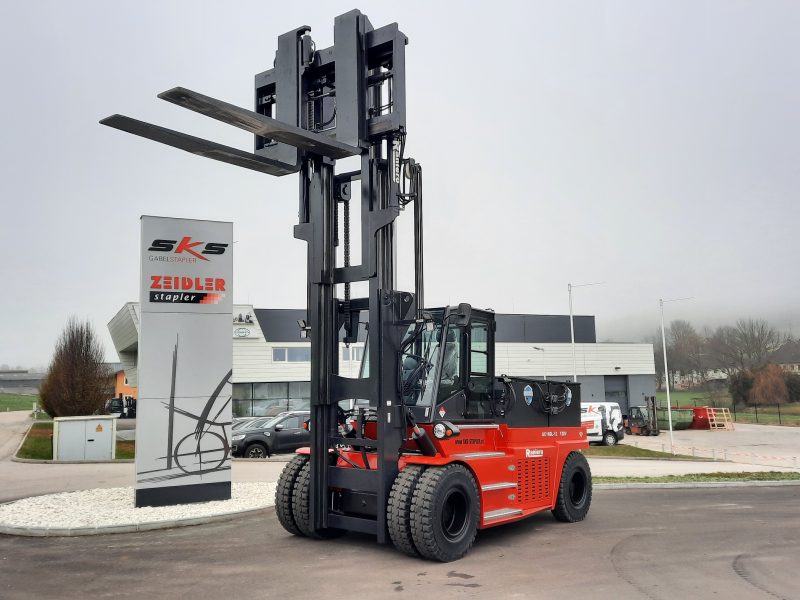

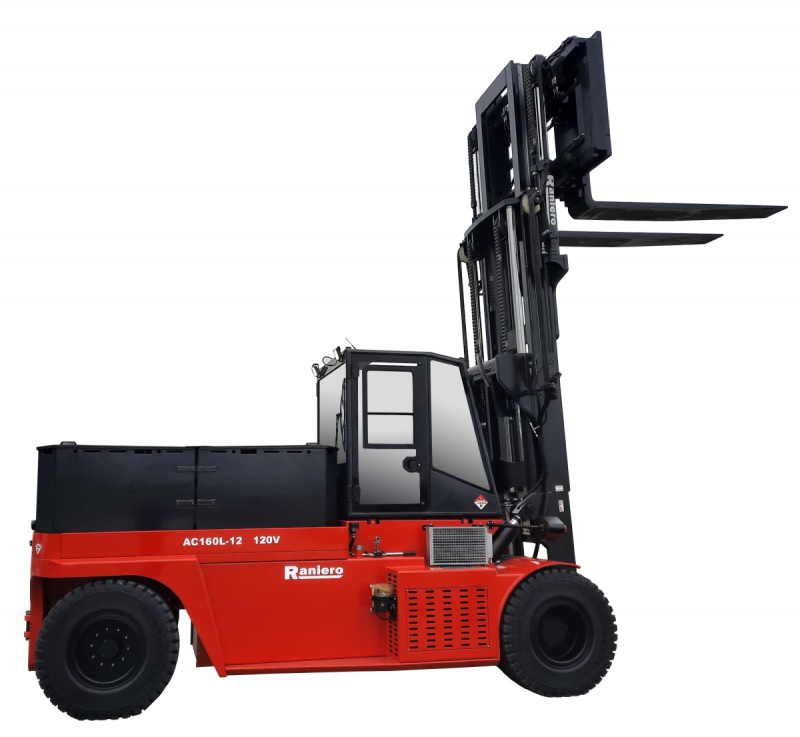

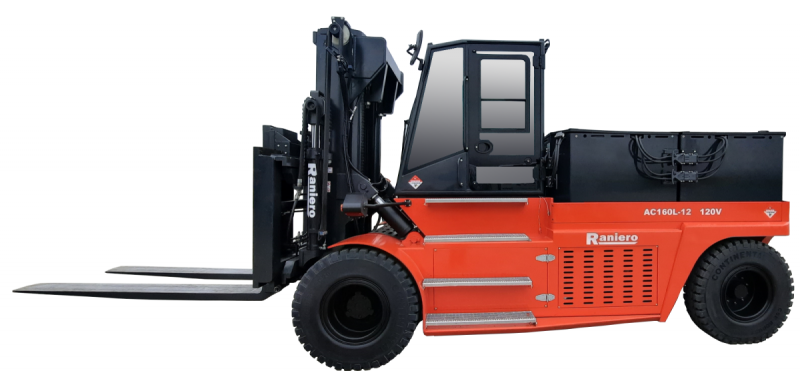

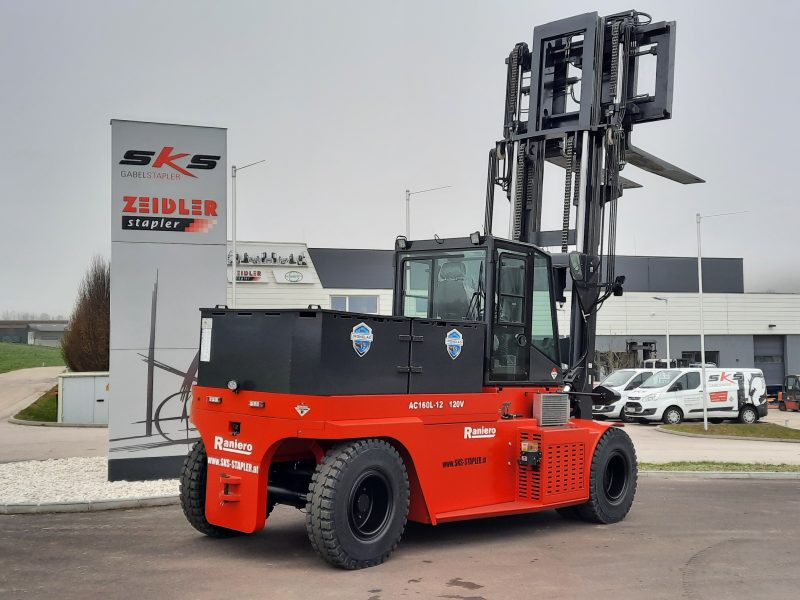

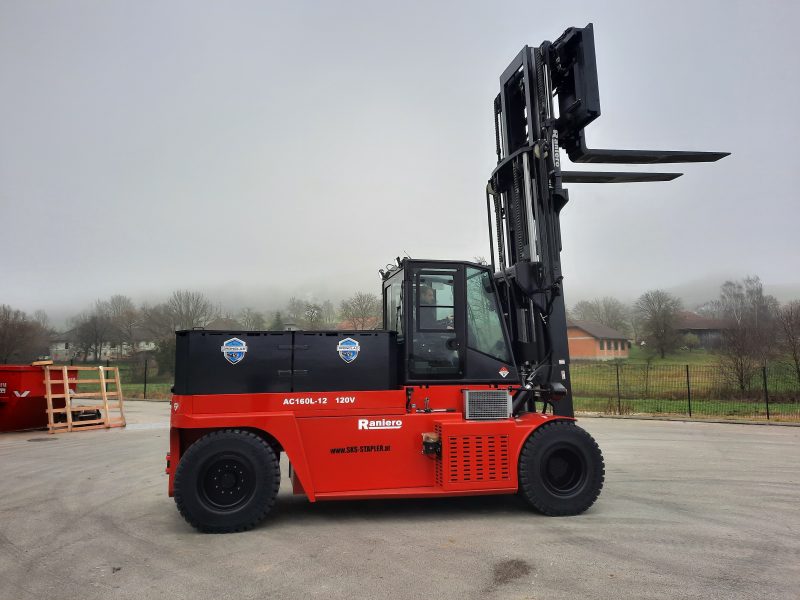

AC160L-12 / AC180L-12 / AC200L- 12 SOLID TYRES

16000kg, 18000kg, 20000kg at 1200 mm

The AC series from 16 to 20 tons with a load centre at 1200mm represents our long experience in the high capacity electric forklifts field.
The development of this innovative line comes from the needs of the manufacturing companies to use performing forklifts for the handling of heavy loads saving operating costs, versatility and zero pollutant emissions.

Main characteristics:

  • The electronic management AC and batteries 120V voltage allow this forklift series equal performance to those of internal combustion of similar range.
  • Energy-saving: each engine- traction 90kW (120V), lifting pump 62kW (120V), 13kW (120V) steering– is activated individually when required.
  • AC technology offers a list of advantages for the driver. Rapid and precise response to every single activated command.
  • Liquid cooling system
    For long working operations and heavy-duty applications

    – High performances
    – No maintenances
    – No cleaning activities requested
    – Avoid any dust into the motors
  • Central greasing
  • SE – Solid tyres 4+2 -, wide only b2= 2450 mm, less wide than other forklift brands
  • TPLS separated side shift from fork positioner. 4 hydraulic ways with piping.
  • No vibration emissions on handling loads benefiting safe workplace during lifting, tilting or shifting.
  • No impetuous movement typical of diesel engines in driving phases.
  • Operator-forklift interaction regarding movements, diagnosis of anomalies and in the management of working parameters.
  • comfortable cabin with a 360° and overhead view
    Magnifica Cabin is for those who like to have a smooth cabin where the operator is surrounded by plastic dashboards that cover each side and air conditioner/heater nozzles too
    The rear window is possible to be open
    Bottle holder
    Ergonomic adjustable seat with seatbelt Grammer mod. Pneumatic springing Seat PRIMO EL PLUS and automatic adjusting electronically
    Heater and wider seat of 530 mm
    Second passenger seat
    Heater
  • Power-assisted steering optimizes space and manoeuvres. Devio command or bi-pedal for a quick and safe change of gear.
  • A braking system in oil bath with energy recovery on deceleration or reversal of the driving direction.
  • Well-weighted and robust chassis, a reinforced mast with a cart with 6 bearings d.220 mm bring stability, safety and reliability during the handling of heavy and often bulky loads.
  • Rear battery positioning to facilitate a quick change.
