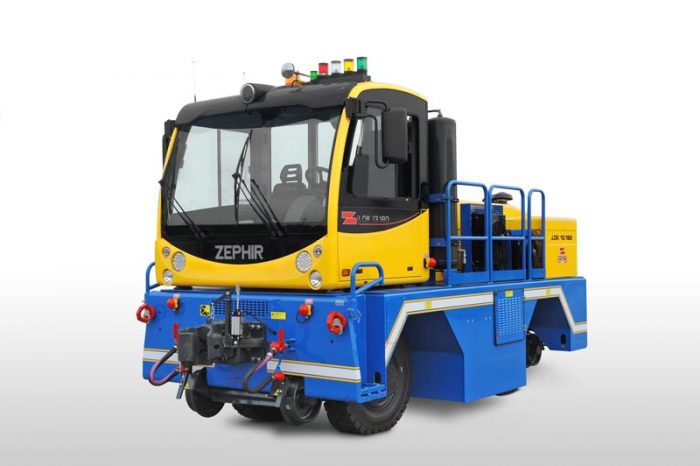

Line Lok 2.60 / 4.90 / 6.110

Line LOK is able to replace locomotives from Maneuver up to 100 tonnes.

Description

The “LOCOTRACTOR” model LOK is a rail/road Diesel vehicle with hydraulic traction. It’s produced in 12 models able to substitute the traditional locomotives having a weight of 100 tons.
It’s a very flexible vehicle able to enter and exit the rail-roads and able to move quickly in the plants.

It could be equipped with automatic hooks and remote control which turn the Locotractor in a vehicle quicker and cheaper for the wagons handling.

loko | Container Handling Equipment |

Data Sheet

LOK 2.60 LOK 4.90 LOK 6.110
Drive Diesel Diesel Diesel
Operator type (road mode) Operator seated Operator seated Operator seated
Dimensions (LxWxH) mm 4800x2500x3400 4800x2500x3400 4800x2500x3400
Drive t 10 14 16
Service weight kN 30 50 70
Max. drawbar pull kN 600 1000 1400
Max. towing capacity km/h 25 25 25
Engine manufacturer Cummins Cummins Cummins
Engine power kW/HP 82/110 82/110 82/110
No of cylinders/displacement cm3 4/4500 4/4500 4/4500
Fuel tank capacity dm3 250 250 250
Power shift transmission – torque converter – (fwd/rev) speeds 3/3 3/3 3/3

Accessories

  • Radio remote control, interlock, ground operator safety remote control
  • Availability of different rail gauge measures
  • Air conditioning inside the cabin
  • Wide range of hooks, couplers and tow bars
  • Pneumatic braking system
  • Railtrack “short-circuit” signalling system and distance proximity sensors
  • In-railing and on-hook video cameras system
  • Cold environment protection “Arctic pack”
  • High temperature pack
  • Multi-Unit configuration
  • Latest engines generation
  • Engine star & stop
  • Driver seat on right side
  • Painting and custom stickers
  • Extended Warranty
  • Availability of other options upon request
