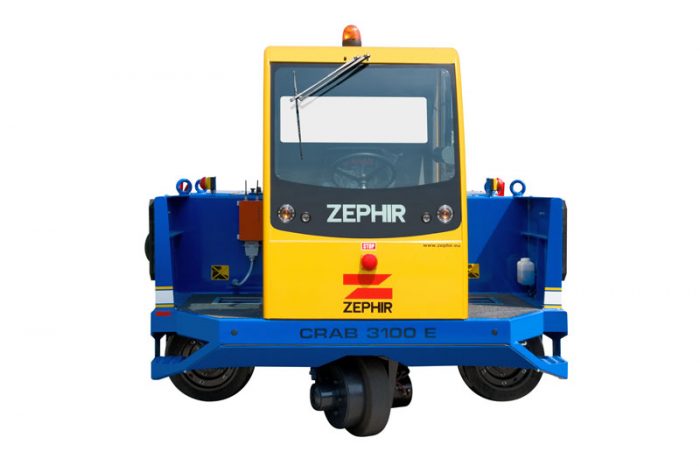

Line Crab 2100 E / 3100 E

The “Locotractor” CRAB model is a rail/road vehicle, battery electric powered, designed for indoor factories, railways workshops and storehouses.

Description

The “Locotractor” CRAB model is a rail/road vehicle, battery electric powered, designed for indoor factories, railways workshops and storehouses. Its great flexibility, the compact dimensions and the reduced curve radius (2,55 meters) make the CRAB suitable to move railway rolling stock.

The CRAB is a safe and cheap vehicle thanks to its versatility and to the different optional with which it could be equipped, like adjustable hooks, remote control

Data Sheet

Crab 2100 E Crab 3100 E
Drive Battery powered Battery powered
Operator type (road mode) Operator seated Operator seated
Dimensions (LxWxH)  mm 2880x2050x2435 100x2450x2435
Service weight t 5,2 6,6
Max. drawbar pull kN 26 36
Max. towing capacity  t 520 730
Max. rail speed unloaded/loaded km/h 7/2 7/2
Rail drive motor rating (power system) kW 12 (AC) 20 (AC)
Acid lead battery with centralized refilling system , voltage/nominal capacity V/Ah 80/620 80/1000
On board battery charger V/Ah 80/100 80/180

Accessories

  • Radio remote control, interlock, ground operator safety remote control
  • Availability of different rail gauge measures
  • Heating and Air conditioning inside the cabin
  • Wide range of hooks, couplers and tow bars
  • Pneumatic braking system
  • Railtrack “short-circuit” signalling system and distance proximity sensors
  • Cold environment protection “Arctic pack”
  • IP65 protection grade
  • Painting and custom stickers
  • Extended Warranty
  • Availability of other options upon request
